Carbon Fiber vs ABS Plastic: Which Material Is Better for Automotive Accessories?

Carbon fiber and forged carbon fiber are two of the most talked‑about materials in the automotive aftermarket world today. Both look premium, both are “real carbon,” but they are not the same—and choosing the right one can make a big difference in performance, durability, style, and cost for your next project with Shasha Carbon.

Key Differences Between Carbon Fiber and Forged Carbon Fiber

Key takeaways:

• Traditional carbon fiber: superior directional strength, lightweight, sleek woven appearance.
• Forged carbon fiber: slightly more impact-resistant in multiple directions, unique aesthetic, easier to mold complex shapes.

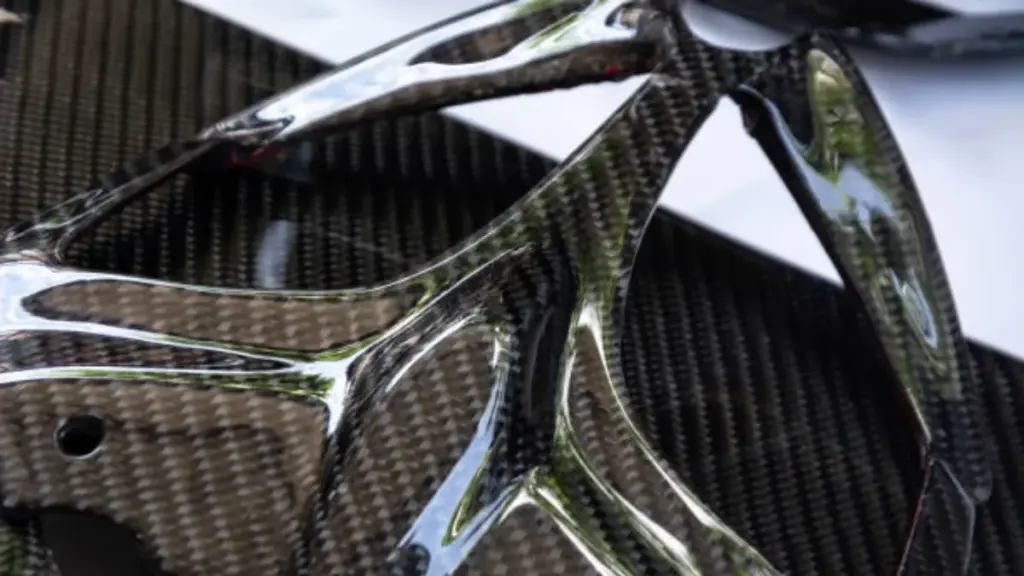

What Is Carbon Fiber?

ألياف الكربون is a high-strength, lightweight material made from thin strands of carbon atoms bonded in a crystal structure. These strands are typically woven together and combined with a resin to create carbon fiber reinforced polymer (CFRP).

In automotive accessories, carbon fiber is primarily applied in:

• Exterior aerodynamic parts: spoilers, diffusers, splitters
• Interior trim pieces: dashboards, center consoles, door panels
• Performance components: engine covers, seat frames, structural reinforcements

Pros and Cons of Carbon Fiber

الايجابيات:

1. Exceptional Strength and Stiffness: Carbon fiber provides one of the highest strength-to-weight ratios among available materials.
2. خفيف الوزن: Reduces overall vehicle weight, which improves acceleration, handling, and fuel efficiency.
3. Premium Aesthetic: The classic woven texture adds a high-end appearance to any vehicle.
4. Corrosion Resistant: Unlike metals, carbon fiber does not rust or corrode over time.

السلبيات:

1. Higher Cost: Carbon fiber is more expensive than traditional plastics like ABS, particularly for large or complex parts.
2. Directional Strength: While extremely strong in fiber-aligned directions, carbon fiber can be weaker under forces applied perpendicular to the fiber orientation.
3. Manufacturing Complexity: Requires specialized molds, curing ovens, and skilled labor for precise results.

At Shasha Carbon, we mitigate these challenges by optimizing fiber layups and using advanced resin systems, ensuring that our carbon fiber parts meet both performance and aesthetic standards for automotive applications.

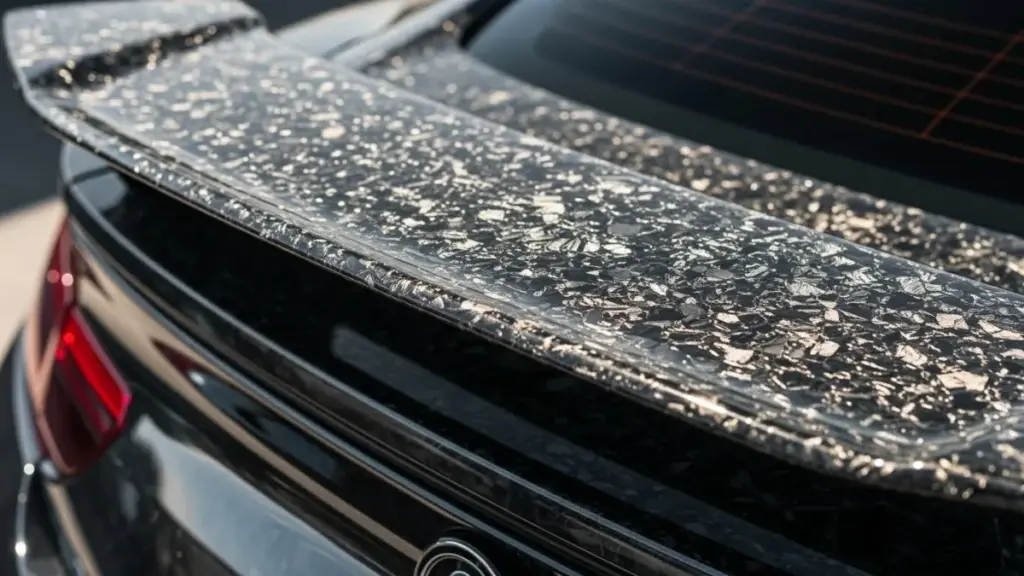

What Is Forged Carbon Fiber?

Forged carbon fiber, also known as forged composite, is an evolution of traditional carbon fiber technology. Short carbon fiber pieces are mixed with resin and pressed into molds under high pressure. This technique creates:

• Highly isotropic mechanical properties
• Ability to produce complex shapes with minimal waste
• Unique, visually striking marbled appearance

Forged carbon is particularly popular in interior trim and decorative exterior panels where aesthetics and moderate structural performance are both important. Many high-end automotive brands use forged carbon for small, visually impactful components because each piece has a slightly unique pattern, adding a sense of craftsmanship and exclusivity.

Pros and Cons of Forged Carbon Fiber

الايجابيات:

1. Uniform Strength: Unlike traditional carbon fiber, forged carbon distributes strength more evenly, reducing weak points.
2. Design Flexibility: Easier to mold into complex shapes, making it ideal for custom automotive accessories.
3. Visual Uniqueness: Each part has a distinct marbled pattern, offering high aesthetic value.
4. خفيف الوزن: Still significantly lighter than metals while maintaining good mechanical properties.

السلبيات:

1. Slightly Lower Stiffness: Forged carbon generally has lower directional stiffness than continuous carbon fiber.
2. اعتبارات التكلفة: While less labor-intensive for complex shapes, raw material costs remain higher than ABS.
3. Surface Finishing: Requires additional polishing or coating to achieve a flawless high-gloss finish.

At Shasha Carbon, we leverage forged carbon technology to provide premium interior and exterior automotive components, balancing performance, design, and manufacturability.

Manufacturing Process of Carbon Fiber

The production of traditional carbon fiber automotive components is a highly precise process, ensuring both structural performance and visual quality. At Shasha Carbon, we follow strict protocols to deliver parts that meet the highest automotive standards.

1. Material Selection
   High-quality prepreg sheets are selected, consisting of carbon fibers pre-impregnated with an epoxy resin system. Fiber orientation, resin type, and thickness are chosen according to structural and cosmetic requirements.
2. Layup and Stacking
   Prepreg sheets are cut and stacked in a specific fiber orientation to optimize directional strength. For example, unidirectional fibers may be aligned at 0°, 45°, and 90° angles depending on load requirements. Automated cutting tools and templates ensure precision and minimize waste.
3. Molding and Consolidation
   The stacked layup is placed in a rigid mold and كيس مفرغ من الهواء to remove trapped air and ensure uniform pressure during curing. A vacuum of approximately 0.9 bar (−13 psi) is typically applied to ensure proper consolidation.
4. Curing
   The mold is placed in an autoclave or heated press. Typical curing parameters for automotive epoxy prepregs are:
   • Temperature: 120–180°C (248–356°F), depending on the resin system
   • Pressure: 5–7 bar (72–100 psi)
   • Time: 2–3 hours, sometimes followed by a post-cure at 180–200°C (356–392°F) for 1–2 hours to maximize thermal and mechanical properties
   This controlled process allows the resin to fully polymerize and bond with the fibers, producing maximum stiffness, strength, and surface quality.
5. Demolding and Trimming
   After curing, the part is removed from the mold. Excess flash is trimmed using CNC routers or precision hand tools.
6. Sanding, Polishing, and Coating
   Surface finishing involves multi-stage sanding, polishing, and clear-coating. This not only enhances the visual appeal of the woven texture but also provides UV resistance and scratch protection, essential for automotive interior and exterior parts.
7. ضبط الجودة
   Each part undergoes dimensional inspection and structural testing to ensure it meets mechanical and cosmetic specifications.

Manufacturing Process of Forged Carbon Fiber

Forged carbon fiber, or forged composite, offers design flexibility and a unique aesthetic while maintaining strong mechanical properties. The process is different from traditional woven carbon fiber and is ideal for complex automotive parts.

1. Fiber Chopping and Resin Mixing
   Continuous carbon fibers are chopped into short lengths (typically 6–12 mm) and mixed with an epoxy resin to create a homogeneous composite slurry. Resin content is usually 30–40% by weight, adjusted for mechanical performance and moldability.
2. Mold Preparation
   Complex molds are prepared to match the exact shape of the part. Forged carbon allows intricate geometries with fewer layering steps compared to traditional carbon fiber.
3. Compression Molding
   The fiber-resin mixture is placed into the mold and compressed under heat and pressure. Typical process parameters:
   • Temperature: 140–160°C (284–320°F)
   • Pressure: 50–80 bar (725–1,160 psi)
   • Time: 20–40 minutes depending on part thickness
   The high pressure ensures the mixture fully conforms to the mold and eliminates air pockets, resulting in a dense, uniform composite with a marbled visual texture.
4. Cooling and Demolding
   After curing, the mold is cooled gradually to room temperature before demolding to maintain dimensional stability and prevent warping.
5. Trimming and Surface Finishing
   Flash and excess material are trimmed with precision tools. Sanding, polishing, and clear coating follow to enhance appearance and provide scratch resistance and UV protection.
6. فحص الجودة
   Each forged carbon part undergoes thorough inspection for dimensional accuracy, surface quality, and mechanical integrity. Randomized visual patterns give each component a unique aesthetic, a hallmark of high-end automotive applications.

How to Choose the Right Material for Your Next Project with Shasha Carbon

Selecting the right carbon fiber material is crucial for automotive projects, balancing performance, design, and manufacturability. At Shasha Carbon, we guide clients through this process using our expertise in both traditional carbon fiber and forged carbon fiber.

• Performance Considerations: Traditional carbon fiber provides exceptional stiffness and directional strength, making it ideal for structural or load-bearing components. Forged carbon fiber, with its isotropic strength, offers more uniform performance and is better suited for complex shapes or parts exposed to multi-directional stresses.
• Design and Aesthetics: Forged carbon allows intricate molds and produces a unique marbled pattern, perfect for decorative interior or exterior elements. Traditional carbon fiber delivers the classic woven look, conveying a premium, high-performance feel.
• Manufacturing and Production: Shasha Carbon evaluates the part geometry, required mechanical properties, and production volume to recommend the most suitable material. Our team ensures that each component meets structural integrity, weight optimization, and visual quality standards.

Contact Shasha Carbon today to discuss your project and let our team help you select the perfect carbon fiber material for high-performance, precision-engineered automotive components.
